TP-Link SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

Images are for illustration purposes only. Please refer to product description.

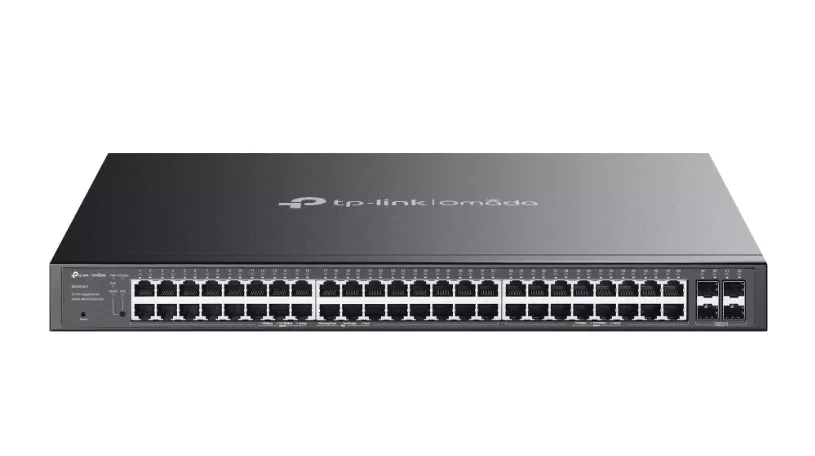

TP-Link SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

SKU: 608-1497 Categories: , , , ,

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Add to Quote

Description

Tp-Link SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

  • 32× Gigabit 802.3af/at PoE+ ports
  • 16× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
  • 230 W total PoE budget with up to 30 W PoE output per port
  • Centralized cloud management via the web or the Omada app
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Fanless design for quiet operation
  • Durable metal casing and rack mountable design

Related products

Create an Account.

Set up your QED account in minutes to access a wide range of products, 4pm order cut-off time, and a team that's always got your back.

Get Started
Manufacturer

Interface

• 32× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 16× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4× Gigabit SFP Slots
Fan Quantity

Fanless
PoE Ports (RJ45)

• Standard: 802.3at/af compliant
• PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port)
• PoE Power Budget: 230 W*
VLAN

• VLAN Group: Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
L2 and L2+ Features

• 16 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
– DHCP Interface Relay
– DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
L2 Multicast

• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• Limited IP Multicast (256 profiles and 16 entries per profile)
Dimensions ( W x D x H )

17.3×13.0×1.7 in (440×330×44 mm)
