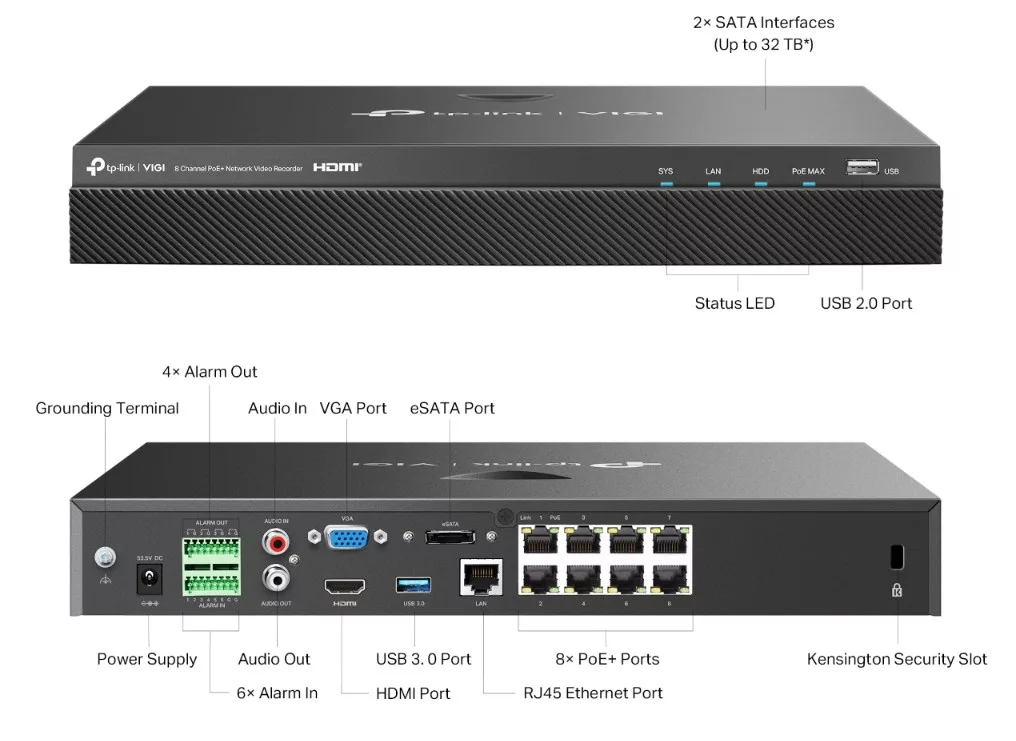

TP-Link VIGI NVR2008H-8MP VIGI 8 Channel PoE+ Network Video Recorder

Name: TP-Link VIGI NVR2008H-8MP VIGI 8 Channel PoE+ Network Video Recorder
SKU: 608-1739

SKU: 608-1739 Categories: 8 Channel, CCTV, Recorders, TP-Link

* 2 x HDD Slots, HDD’s not included.

* The alarm output port of the VIGI NVR is compatible with DC loads of up to 24V.

Add to Quote

*¹Calculations are based on laboratory testing. Actual data is not guaranteed and will vary as a result of client limitations and environmental factors.

*²The number of simultaneously playable channels may be fewer than 8, or none, if the total resolution exceeds 32MP.

Create an Account.

Set up your QED account in minutes to access a wide range of products, 4pm order cut-off time, and a team that's always got your back.

Get Started

Datasheets
Specs
Support

Manufacturer	TP-Link
IP Video Input	8 – Channel
Incoming Bandwidth	160 Mbps
Video Compression	H.265+/H.265/ H.264+/H.264
Alarm In/Out	6/4
Video Output Mode	HDMI and VGA Independent / Simultaneous Output
PoE	90W Available for All PoE+ Ports, 30 W Max per Port
Power Supply	53.5V DC/2.43A
HDD SATA	2 SATA Interfaces – Up to 16 TB Capacity for Each HDD
Dimensions	W13 × D11.2 × H1.8 in (330 × 285 × 45 mm)

NVR2008H-8MP(UN)2.0 Datasheet.pdf (687 KB)

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product

SKU

Full Name*

Email*

Phone*

Message*

CAPTCHA

TP-Link VIGI NVR2008H-8MP VIGI 8 Channel PoE+ Network Video Recorder

VIGI 8 Channel PoE+ Network Video Recorder

8-Channel Live View and 4K HDMI Video Output

8× 10/100 Mbps PoE+ Ports with 90 W PoE Budget*¹

Up to 8-ch @ 4MP / 4-ch @ 8MP Decoding Capability

8-Channel Synchronous Playback*²

160 Mbps Incoming Bandwidth and 160 Mbps Outgoing Bandwidth

2× SATA Interfaces and 1 Up to 16 TB

H.265+ Compression Technology

HDMI and VGA Independent / Simultaneous Output

Remote Monitoring

*¹Calculations are based on laboratory testing. Actual data is not guaranteed and will vary as a result of client limitations and environmental factors.

*²The number of simultaneously playable channels may be fewer than 8, or none, if the total resolution exceeds 32MP.

Create an Account.

TP-Link VIGI NVR2008H-8MP VIGI 8 Channel PoE+ Network Video Recorder

Description

VIGI 8 Channel PoE+ Network Video Recorder

8-Channel Live View and 4K HDMI Video Output

8× 10/100 Mbps PoE+ Ports with 90 W PoE Budget*1

Up to 8-ch @ 4MP / 4-ch @ 8MP Decoding Capability

8-Channel Synchronous Playback*2

160 Mbps Incoming Bandwidth and 160 Mbps Outgoing Bandwidth

2× SATA Interfaces and 1 Up to 16 TB

H.265+ Compression Technology

HDMI and VGA Independent / Simultaneous Output

Remote Monitoring

*1Calculations are based on laboratory testing. Actual data is not guaranteed and will vary as a result of client limitations and environmental factors.

*2The number of simultaneously playable channels may be fewer than 8, or none, if the total resolution exceeds 32MP.
